Running Simulations

Running More Than One Simulation

To solve every enabled solution setup in a design:

1. In the project tree, under the design you want to solve, select Analysis.

2. Click HFSS>Analyze All.

Each enabled solution setup is solved in the order it appears in the project tree.

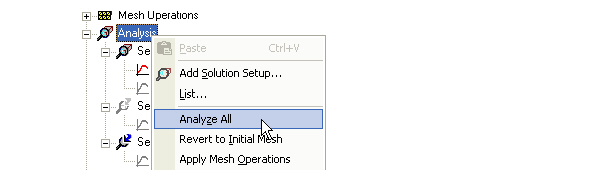

The example here show an analysis invoked from the Project tree popup menu with three setups, one disabled, two enabled. The first setup has one sweep enabled, and one disabled (greyed icon).The second setup is disabled, and the third is enabled, with a disabled sweep.

To solve two or more sweeps or two or more parametric analyses under a setup:

1. In the project tree, under the design you want to solve, right-click the setup icon that includes the sweeps of interest.

2. Click Analyze on the shortcut menu.

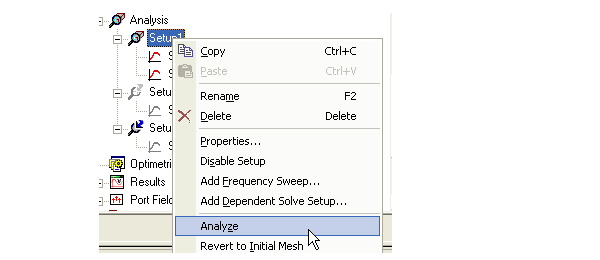

Each solution sweep under that setup is solved in the order it appears in the project tree, using the available machines. The example below shows a setup with two enabled sweeps.
